Benchtop Anodizing Lab


Technic’s Laboratory Anodizing Mini-Plant (LAMP) is a compact and complete manual anodizing line in a small footprint. This entry-level system is designed for machine shops and OEM manufacturers interested in having an internal unit with R&D capabilities.

Anodizing Equipment by Technic


Benefits

  • Ability to run 8625 type II/III class 1 & 2 in a compact design
  • Easy maintenance with ergonomically mounted valves
  • Programmable rectifier for multiple recipes and set points
  • Engineered for easy installation


Features

  • Counter flow rinsing for water conservation
  • Plastic fabrication via Technic’s fusion welding process
  • High-quality components for years of reliable service
  • Modular design for different configurations if necessary
  • Units in stock and ready to ship


Ideal for:

  • Machine Shops
  • Testing and R&D Laboratories
  • OEM Manufacturers
  • Small Volume Production
  • Custom Finishers

Markets:

  • Decorative Applications
  • Prototyping
  • Surface Protection
  • Aesthetics
  • Functional

Technical Specifications:

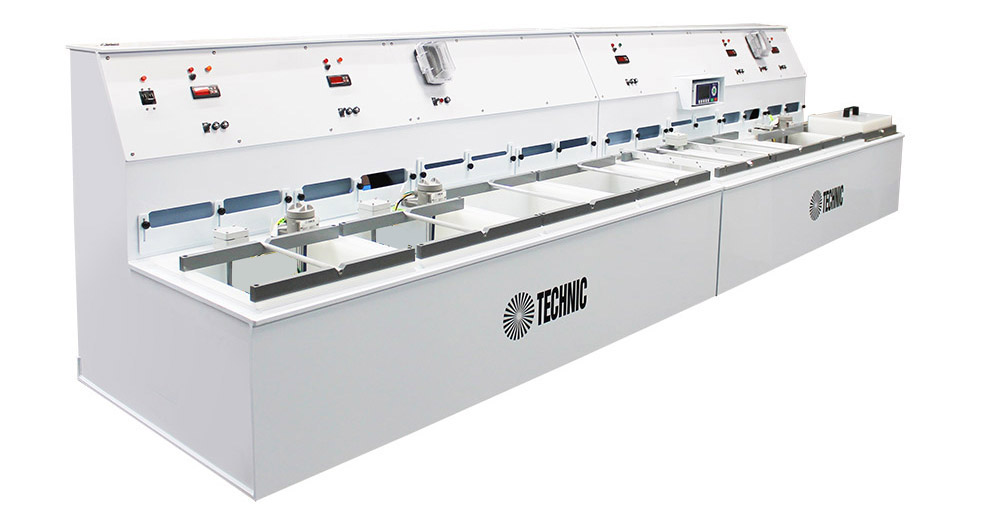

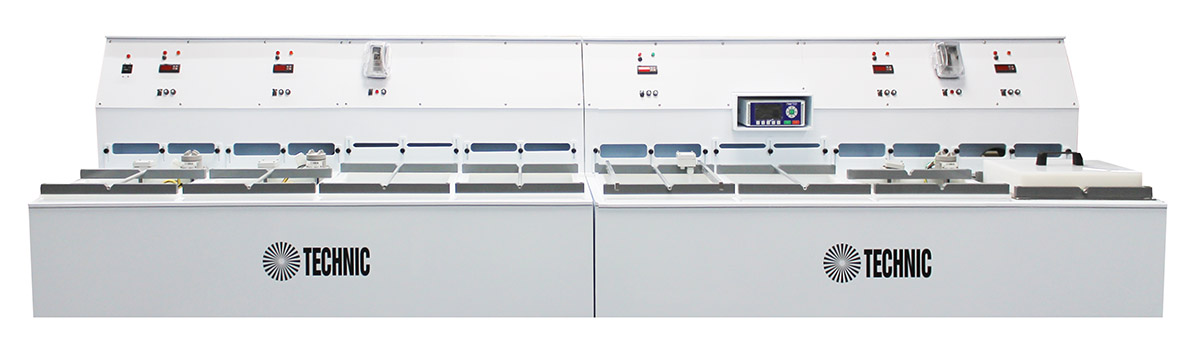

Our Benchtop Prototype Anodizing Lab is a compartmentalized system that comes fully assembled for electricity and plumbing. All controls are mounted into the cabinet behind the process tanks. The rectifier is mounted into a dog house compartment integrated into the console. The system-matched chiller is specified to maintain constant anodizing temperature. Filtration is included. Each module has an integrated containment pan.

Anodizing Systems by Technic

Overall size of Module 1 & 2: Overall size 166” x 35” x 35”

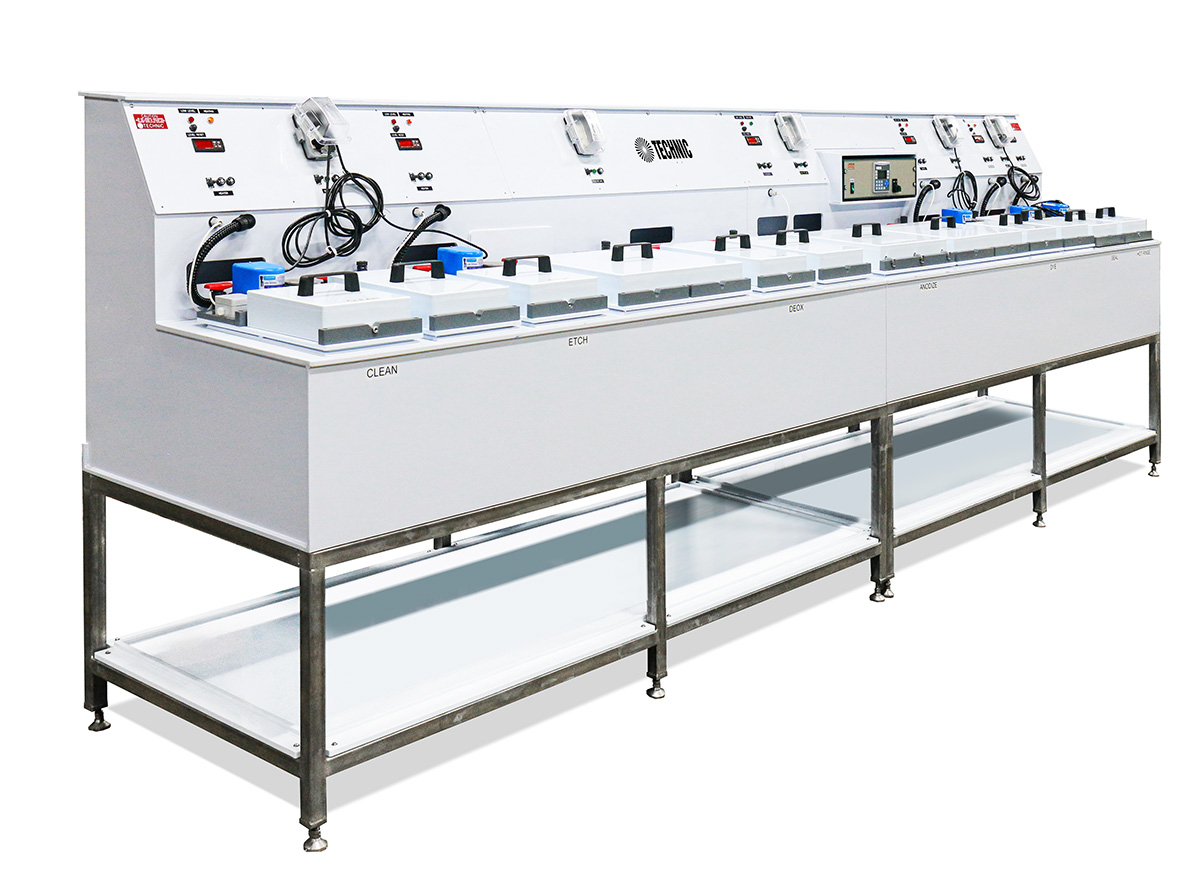

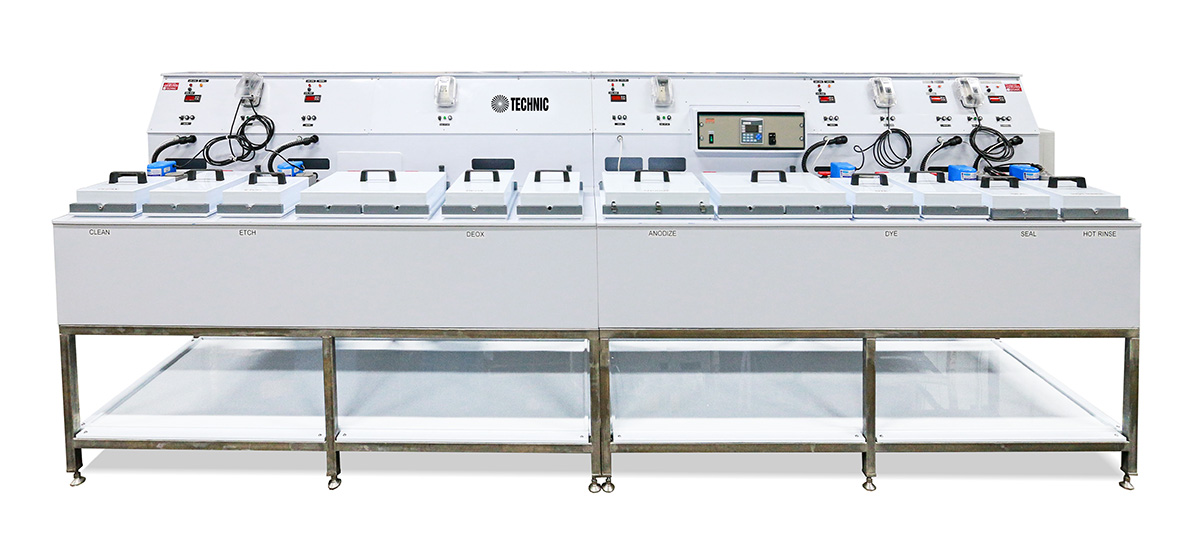

Module 1: Pretreatment - 6 Stations: Process, Alkaline Cleaner, Rinse, Etch, Cascade Rinse, Deox, and Rinse

Module 2: Anodize and Post-treatment - 6 Stations: Anodize, Cascade Rinse, Dye, Rinse, Seal and, Hot Rinse.

Standard Equipment:

  • Rectifier: continuous duty 50 Amp 45 Volt with programmable controller.
  • Glycol chiller cooling with a pump to maintain 55˚-70˚F anodize bath temperature.
  • Ventilation boxes are integrated into the console and ready for exhaust connection.

Upgrade Options:

  • Hardcoat Rectifier
  • Base Frame Support
  • Fluid Transfer Cart

Downloadable Files

Laboratory Anodizing Mini-Plant (LAMP)
